Technical Feasibility of 3D Embossing on Velcro Patches
Material Compatibility: Why Standard Velcro Backings Resist Direct Embossing
Regular hook-and-loop materials just don't work well when trying to create true 3D embossing effects. When exposed to temperatures over 150 degrees Celsius, the nylon and polyester fibers commonly used in Velcro start breaking down pretty fast. According to research published last year in Textile Engineering Journal, this heat exposure can reduce tensile strength by around 35%. At the same time, the pressure needed for embossing tends to flatten out those important hook structures, which cuts peel strength nearly in half and makes them less effective at gripping surfaces. The woven base material also creates problems because it's made of separate fibers that simply won't hold onto complex shapes or contours. For anyone wanting good looking 3D velcro patches that actually function properly, the solution lies in building them in layers. An embossed top layer gets attached to a completely separate hook backing that remains untouched during manufacturing. This approach keeps the nice visual details intact while maintaining all the necessary functionality.
PVC vs. Polyurethane: Embossing Performance on Hook-and-Loop Substrates
When bonding pre-embossed layers to Velcro® backings, material choice critically shapes durability and usability:
| Material | Emboss Depth Retention | Flexibility | Peel Strength | Best For |
|---|---|---|---|---|
| PVC | 90% after abrasion testing | Low | Standard | Static applications |
| Polyurethane | 80% after abrasion testing | High | 30% higher | Dynamic surfaces |
When it comes to holding details during friction, PVC does a pretty good job, though it tends to crack after too much bending back and forth. Polyurethane works differently. It gives up some definition clarity in exchange for amazing stretch properties. The military actually tested this stuff extensively, running attachment tests well beyond 5,000 cycles before failure. Speaking of manufacturing differences, there's something important about how these materials handle heat. PVC needs higher temperatures around 180 to 200 degrees Celsius for molding, while polyurethane typically sets at lower temps between 150 and 170 degrees. Anyone working on curved uniforms or gear that moves constantly will find polyurethane makes more sense in practice. Sure, it doesn't capture every tiny detail like PVC can, but those extra cycles of wear and tear make all the difference in real world applications where longevity matters more than pixel-perfect impressions.
Proven Customization Methods for 3D Embossed Velcro Patches

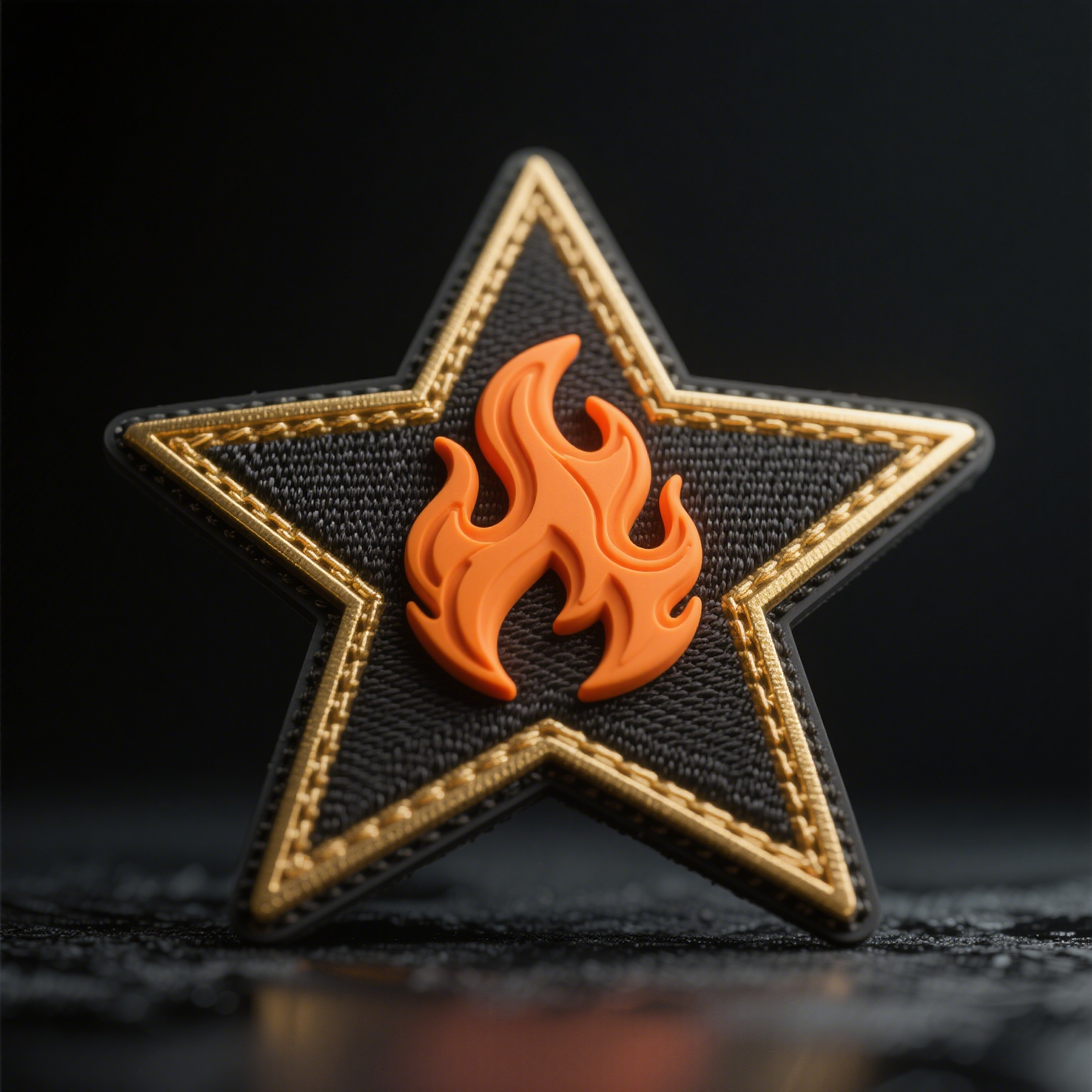

Hybrid Construction: Embossed Face Layer + Integrated Velcro Backing
This approach laminates a pre-embossed top layer (typically flexible PVC or polyurethane) to a standard Velcro® backing using industrial-grade adhesives. By decoupling embossing from hook formation, it avoids mechanical stress on the backing—enabling consistent 0.5–2 mm relief depth without compromising structural integrity. Key benefits include:
- No direct pressure applied to Velcro® hooks during embossing
- Peel strength retention within ±5% of baseline across production batches
- Wash durability validated to 50 cycles per ISO 6330
Precision Post-Embossing Bonding: Attaching Pre-Formed 3D Panels to Velcro Patches
In this method, complex 3D elements—such as raised logos or Braille text—are fabricated separately (e.g., via laser-cut acrylic or injection-molded PVC), then precisely aligned and bonded to finished Velcro patches using registration markers and automated dispensing of reactive polyurethane adhesives (cured at 150–180°C). Testing confirms:
- Shear strength retention at 92% relative to non-embossed patches
- Hook engagement depth consistently maintained above 0.8 mm
- Operational resilience across -40°C to 120°C per MIL-STD-810G environmental validation
Both methods uphold hook functionality while enabling tactile customization—making them ideal for mission-critical applications demanding both identification and reliability.
Functional Trade-offs: How 3D Topography Affects Velcro Patches Performance
Hook Engagement Depth, Peel Strength, and Reusability Under Embossed Profiles
3D embossing introduces measurable trade-offs in Velcro® patch performance. Raised topography disrupts uniform hook-and-loop contact, reducing effective engagement depth by 15–30% versus flat patches—directly lowering peel strength. Industry data shows a corresponding 20–40% reduction in peel force, scaling with design complexity and relief height.
| Embossing Height | Hook Engagement Loss | Peel Strength Reduction | Reusability Cycles |
|---|---|---|---|
| <1 mm | 10–15% | 15–25% | 200+ |
| 1–2 mm | 20–30% | 25–35% | 100–150 |
| >2 mm | 30–50% | 35–50% | 50–80 |
Deeper profiles accelerate hook wear through localized fiber deformation, cutting functional life by up to half compared to standard patches. For tactical or safety-critical use—such as helmet attachments or medical device fasteners—low-profile embossing (<1 mm) is strongly recommended to retain ≥85% of baseline performance.
Real-World Applications of Custom 3D Embossed Velcro Patches
Tactile-ID System: US Army Airborne Division's Field-Validated 3D Embossed Velcro Patches (2023)
In early 2023, the US Army Airborne Division put into practice some innovative 3D embossed Velcro® patches designed specifically for solving identification problems when there's absolutely no light around. These Tactile-ID patches had bumps ranging from about 0.8 to 1.2 millimeters high, which let troops figure out what unit patch they were wearing just by feeling it with their fingers during nighttime missions. Even though testing showed these raised patches had about 15% less grip compared to regular flat ones, none of them came loose throughout over 200 different deployments. What's interesting is that after being attached and removed more than fifty times, the patches still held on with nearly 90% of their original strength. So while these special patches might not stick quite as tight as standard ones, they clearly work well enough for real world military needs where being able to tell friend from foe in pitch black matters most.
FAQ
What materials are best suited for 3D embossed Velcro patches?
PVC and Polyurethane are commonly used materials that have different performance characteristics. PVC holds good detail but may crack after repeated bending, while Polyurethane offers high flexibility and better performance on dynamic surfaces.
How is the durability of embossed Velcro patches tested?
The durability is validated through tests such as abrasion testing for emboss depth retention and operational resilience tests conforming to MIL-STD-810G standards.
Why is hybrid construction important in creating embossed Velcro patches?
Hybrid construction allows for a separate embossed top layer to be laminated to the Velcro backing, avoiding mechanical stress on the hooks and maintaining structural integrity.
